Portable Type Vacuum Breather Valve Testing Bench

Valve Type: Vaccum Breather Valve
Size Range: DN50-DN300 or larger
VALVE TEST RANGE : - 500mbar to 7,000 mbar / -7 to 100 psi
COMPUTER REGISTRATION SYSTEM

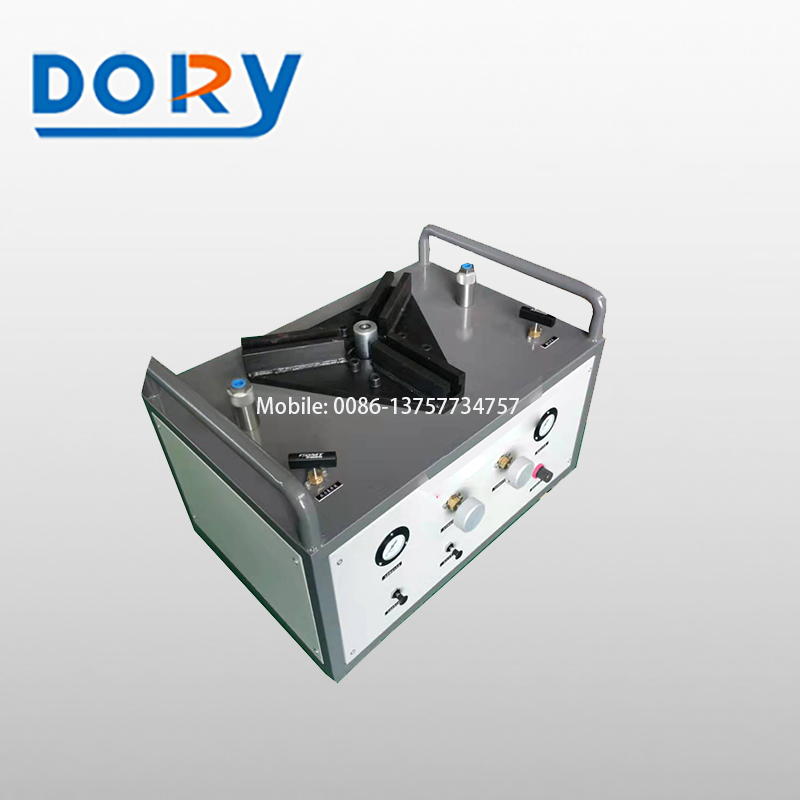

Product description: Portable Type Vacuum Breather Valve Testing Bench
INQUIRY

Product Name: Portable Type PSV Breather Valve test bench

1. Low Pressure & Vacuum test system

Test size: 2''-12'' or 2''-24'' (stationary type)

Valve Test Range: - 500mbar to 7,000 mbar / -7 to 100 psi

Flange type DN25~200mm safety valve

Safety valve with inch thread type 1/2~2 1/2
M27 * 1.5, M30 * 1.5, M33 * 1.5 metric threaded safety valve.

2. High pressure test: 0.8MPa, two ways of air intake, and the user is provided with high-pressure air source (additional pressurization system is available).

3. Pneumatic clamping structure, with clamping force adjustable structure, clamping force 1~9 tons stepless adjustment.

4. Calibration accuracy: ± 0.4%

5. Use medium: normal temperature clean compressed air, nitrogen

6. Double-gauge configuration, adopting quick-twist pressure gauge structure.

7. Overall dimension: 750mm × 540mm × 270mm。

Optional: Laptop

Please contact us for more information.
