YFJ-SG Screw Type Valve Test Bench

  • YFJ-SG300 Screw Type Valve Test Bench
  • YFJ-SG300 Screw Type Valve Test Bench
YFJ-SG300 Screw Type Valve Test Bench YFJ-SG300 Screw Type Valve Test Bench

YFJ-SG300 Screw Type Valve Test Bench

  • Valve Types: Gate/Globe/Check/Ball/Plug Valves etc
  • Size Range: 2''-12'' DN50-DN300
  • Pressure Range: Class 150-Class1500
  • Valve End Type: Flanged RF/RTJ
  • Product description: Equiped with Low Pressure Pump/High Pressure Pump Hydraulic Systsem,Electrical Control System
  • INQUIRY

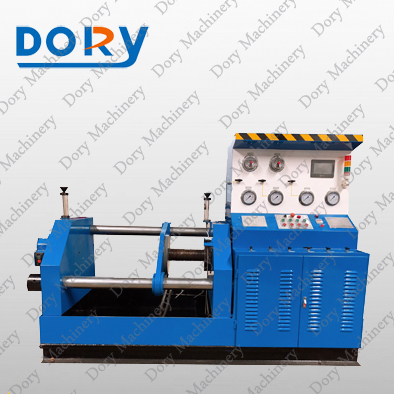

YFJ-SG300 Screw Type Valve Testing Bench

(2’’-12’’ DN50-DN300)


Key Features:

Designed to test Gate,Globe,Check,Ball and Control Valves

Size range: 2’’-12’’ DN50-DN300

Pressure range: Class 150-Class2500 PN16-PN420

( Pressure to be confirmed as different customers require different pressure ,

customization services available )

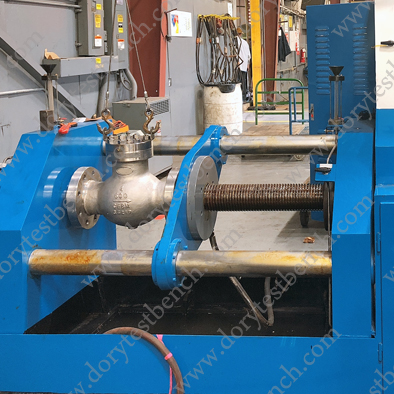

Screw type without external force to the valve body

Stainless steel tubes and pipelines available

With interlock functions for safety

Testing fluid by water or air ,water with a corrosion inhibitor,

according to international valve testing& Inspection standard like API598,

API6D,MSS-SP-70,ASME B16.34,MSS SP-85,FCI 70-2 etc

Recycle water tanks

Air driven liquid booster pump(Maximator or Haskel)

Data acquisition system is available, including PLC,Touch screen,

Printer,with test graphs & reports.


We can customize the machine for you, please send all your details to info@dorytestbench.com
