YFJ-L Vertical Valve Test Bench

  • Valve Tester Valves Testing Equipments Valve Test Bench For floating ball valves
Valve Tester Valves Testing Equipments Valve Test Bench For floating ball valves

Valve Tester Valves Testing Equipments Valve Test Bench For floating ball valves

  • Valve Types: Gate/Globe/Check/Ball/Control/Forged Steel Valves
  • Size Range: 2''-12'' DN50-DN300
  • Pressure Range: Class 150-Class1500
  • Valve End Type: Flanged/BW/SW/NPT
  • Product description: Equiped with Low Pressure Pump/High Pressure Pump Hydraulic Systsem,Electrical Control System As per API598 or other international testing standard
  • INQUIRY

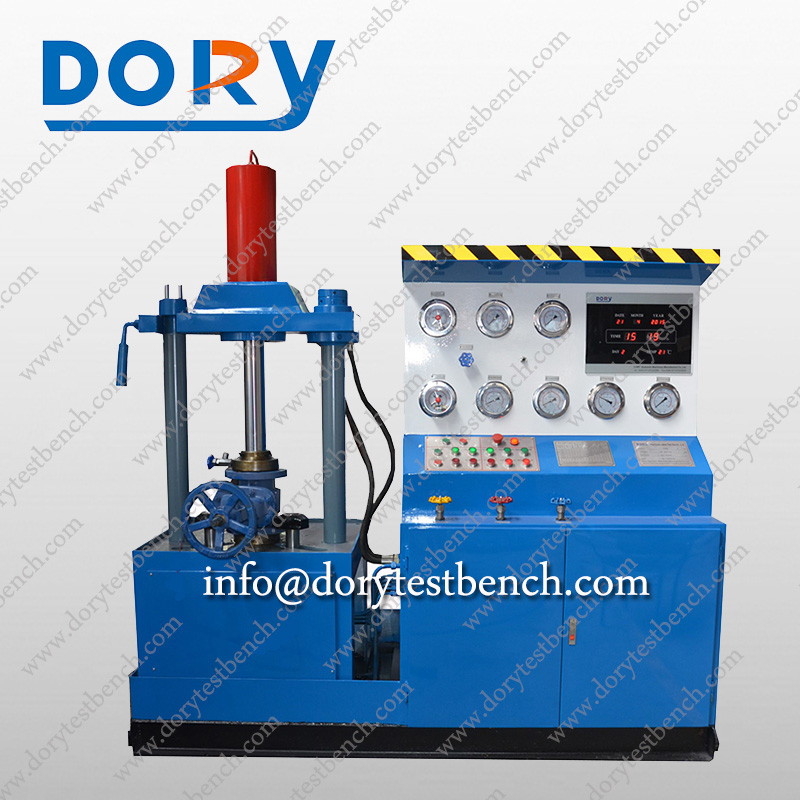

YFJ-L300 Vertical Valve Testing Bench

Dory Hydraulic Valve test bench Vertical Design API598 Valve testing equipments for sale

(2’’-12’’ DN50-DN300)




Key Features:

Designed to test Gate/Globe/Checl/Ball/Plug/Forged Steel Valves

With flanged, BW ends, SW ends, NPT thread ends

Size range: 2’’-12’’ DN50-DN300

Pressure range: Class 150-Class1500 PN16-PN250

( Pressure to be confirmed as different customers require different pressure ,

customization services available )

Hydraulic Clamping system with  jaws, by means of clamping flanges

with blind flange adaptors ensure the positive seals of the valve flanges.

Vertical Design with movable beam

Stainless steel tubes and pipelines available

With interlock functions for safety

Testing fluid by water or air ,water with a corrosion inhibitor,

according to international valve testing& Inspection standard like API598 etc

Recycle water tanks

Air driven liquid booster pump(Maximator or Haskel)

Data acquisition system is available, including PLC,Touch screen,

Printer,with test graphs & reports.


Nominal Diameter Inch Nominal Pressure Testing Pressure (Liquid)
DN50 2'' Class150~Class1500 25-380Bar
DN65 2 1/2'' Class150~Class1500
16-380Bar
DN80 3'' Class150~Class1500
16-380Bar
DN100 4'' Class150~Class900
16-250Bar
DN125 5'' Class150~Class900
16-250Bar
DN150 6'' Class150~Class600
16-150Bar
DN200 8'' Class150~Class300
16-80Bar
DN250 10'' Class150
16-60Bar
DN300 12'' Class150
16-38Bar

Machine Name Dory Machinery Vertical Hydraulic Valve Testing Bench / Valve Hydrostatic Tester
Model YFJ-L300
Test Size Range DN50-DN300 2''-12''
Valve Pressure Class 150-Class 1500 PN16-PN250
Clamping Method Lower Side Three Clamping Claws , Upper Size Pressing Cylinder
Clamping Claws Cylinder Dia. Ø100×3
Pressing Cylinder Dia.
Ø150×1
Max Clamping Force 52 Ton
Dory Valve Test Bench

We can customize the machine for you, please send all your details to info@dorytestbench.com
