YFJ-B300 2''-12'' Valve Testing

Valve Repair Workshop Industrial Valve Testing Equipments Valve Bench testing

Valve Types: Gate/Globe/Check/Ball/Plug Valves etc
Size Range: 2''-12'' DN50-DN300
Pressure Range: Class 150-Class1500
Valve End Type: Flanged RF/RTJ
Product description: Valve Repair Workshop Used for Industrial Valve Testing Valve Bench testing for Gate valve, globe valve, check valve ball valve, plug valve,control valves etc
INQUIRY

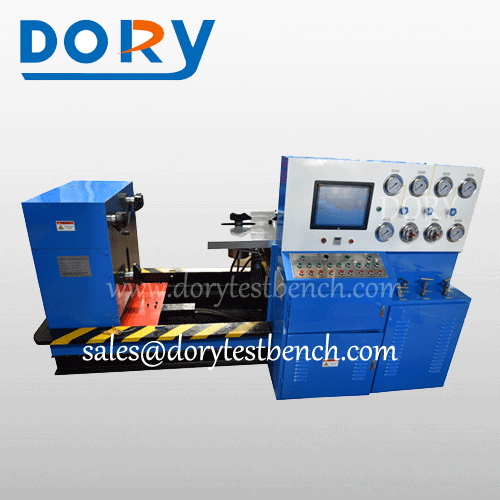

YFJ-B300 Hydrostatic Valve Testing Bench For Valve Repair Workshop

(2’’-12’’ DN50-DN300)

Key Features:

● Designed to test Gate,Globe,Check,Ball and Control Valves

● Size range: 2’’-12’’ DN50-DN300

● Pressure range: Class 150-Class2500 PN16-PN420

( Pressure to be confirmed as different customers require different pressure ,

customization services available )

● Hydraulic Clamping system with three jaws, by means of clamping flanges

with blind flange adaptors ensure the positive seals of the valve flanges.

● Left work table is movable

● Right work table with 90° rotating function,easy for air low pressure closure testing

● Stainless steel tubes and pipelines available

● With interlock functions for safety

● Testing fluid by water or air ,water with a corrosion inhibitor,

according to international valve testing& Inspection standard like API598,

API6D,MSS-SP-70,ASME B16.34,MSS SP-85,FCI 70-2 etc

● Recycle water tanks

● Air driven liquid booster pump(Maximator or Haskel)

● Data acquisition system is available, including PLC,Touch screen,

Printer,with test graphs & reports.

Product Name	Horizontal Valve Testing Bench for Flange ends Valves
Suitable Valve Types	Gate Valve,Globe Valve,Check Valve,Ball Valve,Plug Valve,Control Valves etc Flanged Straight Type Valves
Model Name	YFJ-B300
Test Range	DN50-DN300 2''-12''
Pressure Range	DN300@Class 300 or higher as per customer request
Clamping Method	Clamping Claws
Clamping Cylinder Dia	Ø160×3×2
Max Clamping Force	140 Ton
Distance Between the two sealing plates	178-850mm
Machine Dimension	3250×1500×1350
