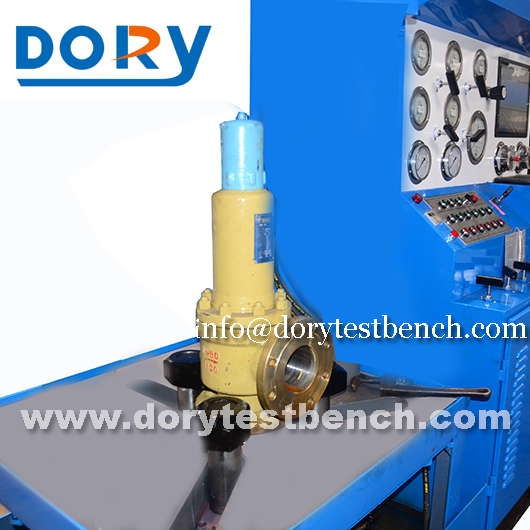

YFJ-A Safety Valve Test Bench

PSV Calibration Test Bench 1/2''-12'' Nitrogen Safety Relief Valve Testing Set Pressure

Valve Types: Safety Relief Valves
Size Range: 2''-12'' DN50-DN300
Pressure Range: Class 150-Class600
Valve End Type: Flanged
Product description: PSV Pressure Safety Valve test bench, with data acquisition system With bubble counter ,Calibration test bench for full lift low lift closed safety valves
INQUIRY

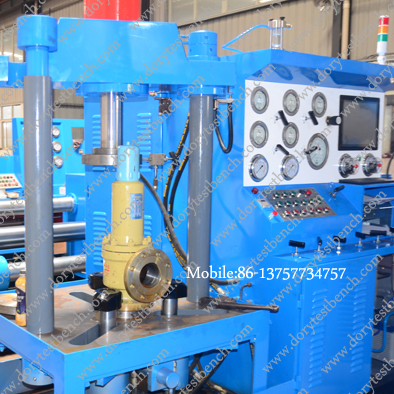

Pressure Safety Relief Valve Testing Bench YFJ-A300

(2’’-12’’ DN50-DN300)

Key Features:

● Designed to test Safety Relief Valves With flanged,NPT thread ends

● Size range: 2’’-12’’ DN50-DN300 (1/2''-2'' available)

● Pressure range: Class 150-Class1500 PN16-PN250

( Pressure to be confirmed as different customers require different pressure ,

customization services available )

● Hydraulic Clamping system with jaws, by means of clamping flanges

with blind flange adaptors ensure the positive seals of the valve flanges.

● Vertical Design

● Stainless steel tubes and pipelines available

● With interlock functions for safety

● Testing fluid by water or air or Nitrogen ,water with a corrosion inhibitor,

according to international valve testing& Inspection standard like API607 etc

● Recycle water tanks

●Extra connection for bubble counter

● Air driven liquid booster pump or Gas booster pump (Maximator or Haskel)

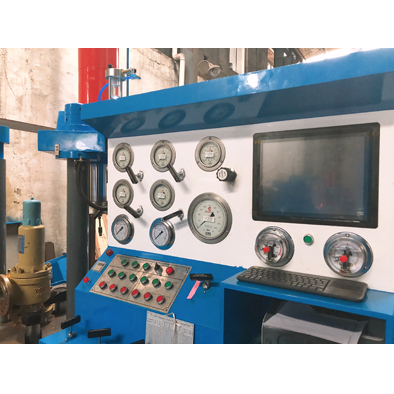

● Data acquisition system is available, including PLC,Touch screen,

Printer,with test graphs & reports. With Bubble Counter
