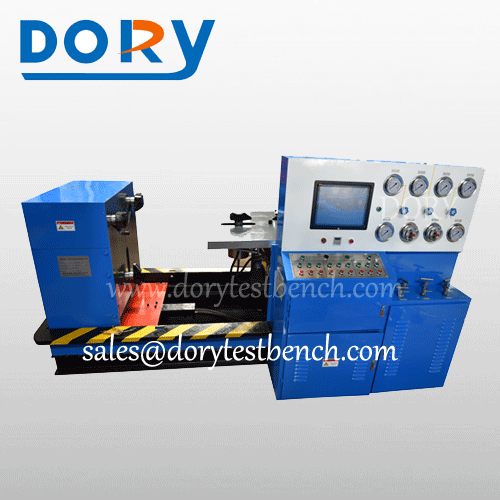

YFJ-B200 2''-8'' Valve Testing

Hydraulic Horizontal Valve Test Bench with fully integrated computer registration system

Valve Types: Gate/Globe/Check/Ball/Plug Valves etc
Size Range: 2''-8'' DN50-DN200
Pressure Range: Class 150-Class1500
Valve End Type: Flanged RF/RTJ
Product description: Valve test bench with Computer registration system, Windows operated PC, Mouse Printer, Fully Integrated, with flash light 3-claw clamping system,Bi-directional seat testing with air (gas) and liq
INQUIRY

YFJ-B200 Hydrostatic Valve Testing Bench

(2’’-8’’ DN50-DN200)

Key Features:

● Designed to test Gate,Globe,Check,Ball and Control Valves

● Size range: 2’’-8’’ DN50-DN200

● Pressure range: Class 150-Class2500 PN16-PN420

( Pressure to be confirmed as different customers require different pressure ,

customization services available )

● Hydraulic Clamping system with three jaws, by means of clamping flanges

with blind flange adaptors ensure the positive seals of the valve flanges.

● Left work table is movable

● Right work table with 90° rotating function,easy for air low pressure closure testing

● Stainless steel tubes and pipelines available

● With interlock functions for safety

● Testing fluid by water or air ,water with a corrosion inhibitor,

according to international valve testing& Inspection standard like API598,

API6D,MSS-SP-70,ASME B16.34,MSS SP-85,FCI 70-2 etc

● Recycle water tanks

● Air driven liquid booster pump(Maximator or Haskel)

● Data acquisition system is available, including PLC,Touch screen,

Printer,with test graphs & reports.

Testing Range :

Product Name	Horizontal Hydraulic Valve test bench for Flange ends Valves
Model Name	YFJ-B200
Valves to be tested	Flange ends Gate Valve,Globe Valve,Check Valve,Ball Valve,Plug Valves etc
Size Range	DN50-DN200 2''-8''
Pressure Range	Class150-Class900
Clamping Cylinder Dia.	Ø100×3×2
Max Clamping Force	53 Ton
Distance Between two sealing adaptors	170-900mm
Approx Dimension	2700mm×1400mm×1250mm
