YFJ-BQ Submerged Valve Test Bench

  • DN15-DN150 Submerged Valve Test Bench For Penumatic Body Testing Wedge Gate Valves
  • DN15-DN150 Submerged Valve Test Bench For Penumatic Body Testing Wedge Gate Valves
DN15-DN150 Submerged Valve Test Bench For Penumatic Body Testing Wedge Gate Valves DN15-DN150 Submerged Valve Test Bench For Penumatic Body Testing Wedge Gate Valves

DN15-DN150 Submerged Valve Test Bench For Penumatic Body Testing Wedge Gate Valves

  • Valve Types: Gate/Globe/Check/Ball/Plug Valves etc
  • Size Range: 1/2''-6'' DN15-DN150
  • Pressure Range: Class 150-Class1500
  • Valve End Type: Flanged RF/RTJ
  • Product description: Equiped with Low Pressure Pump/High Pressure Pump Hydraulic Systsem,Electrical Control System , with big water tank. whole clamping table can submerged into the water tank
  • INQUIRY

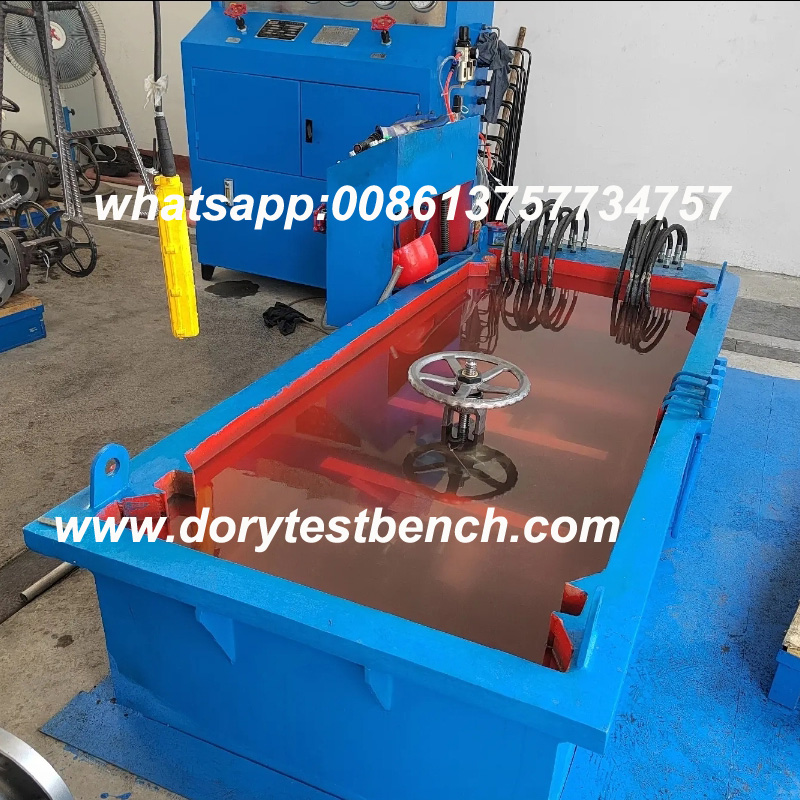

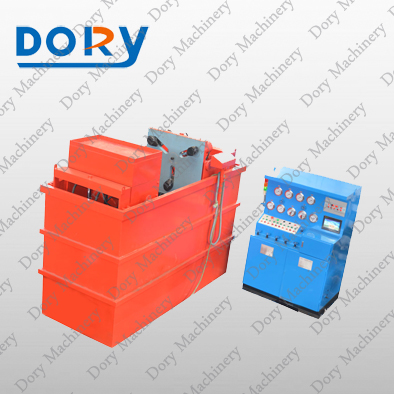

YFJ-BQ150 Submerged Hydrostatic Valve Testing Bench WITH BIG WATER TANK

(1/2’’-6’’ DN15-DN150)


Key Features:

Designed to test Gate,Globe,Check,Ball and Control Valves

Size range: 1/2’’-6’’ DN15-DN150

Pressure range: Class 150-Class2500 PN16-PN420

( Pressure to be confirmed as different customers require different pressure ,

customization services available )

Hydraulic Clamping system with three jaws, by means of clamping flanges

with blind flange adaptors ensure the positive seals of the valve flanges.

Left work table is movable,With big water tank,Whole test bench submerged into water tank

Right work table with 90° rotating function,easy for air low pressure closure testing

Stainless steel tubes and pipelines available

With interlock functions for safety

Testing fluid by water or air ,water with a corrosion inhibitor,

according to international valve testing& Inspection standard like API598,

API6D,MSS-SP-70,ASME B16.34,MSS SP-85,FCI 70-2 etc

Recycle water tanks, the machine can submerged into the water tank

Air driven liquid booster pump(Maximator or Haskel)

Data acquisition system is available, including PLC,Touch screen,

Printer,with test graphs & reports.


Model Name

Size Range

Nominal Pressure

Testing Pressure

End

Unit Price

FOBShanghai

(USD)

YFJ-BQ150

DN15

1/2''

Class150-Class900

50-240Bar

Flanged

CONTACT DORY

DN25

3/4''

Class150-Class900

25-240Bar

DN50

2''

Class150-Class900

10-240Bar

DN80

3''

Class150-Class900

10-240Bar

DN100

4''

Class150-Class900

10-240Bar

DN125

5''

Class150-Class600

10-200 Bar

DN150

6''

Class150-Class600

10-150 Bar

The two working table distance is:170-800mm

Max Clamping force:50Ton Clamping Cylinder: 100*2*3

With Maximator Air Driven Liquid Booster Pump

Machine work table with big water tank dimension: 2600*1400*2000

The water tank and the control station are combined design

Water tank dimension :2500*850*1100




We can customize the machine for you, please send all your details to info@dorytestbench.com
